3D Model of an AN/CYZ-10 Data Transfer Device (ANCD)

UNITECH - 2006

Go to previous image
Go to next image

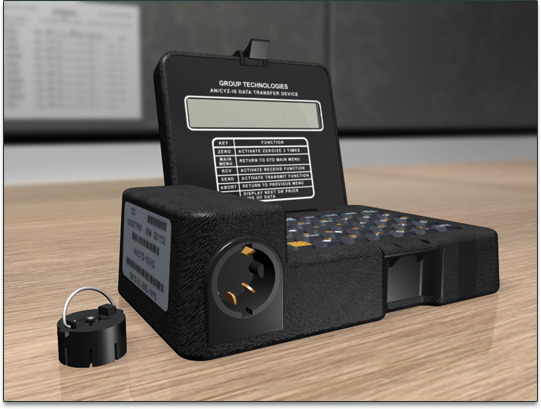

A render of a military AN/CYZ-10 Data Transfer Device (ANCD) used for cryptographic communication. The device was modeled in NURBS, with Rhino 3D, using the actual device for reference, and then ported to 3DS Max for texturing and rendering. I also used FontCreator to build a custom True Type font for the LCD display. The model was used extensively in our SINCGARS radio courseware.
